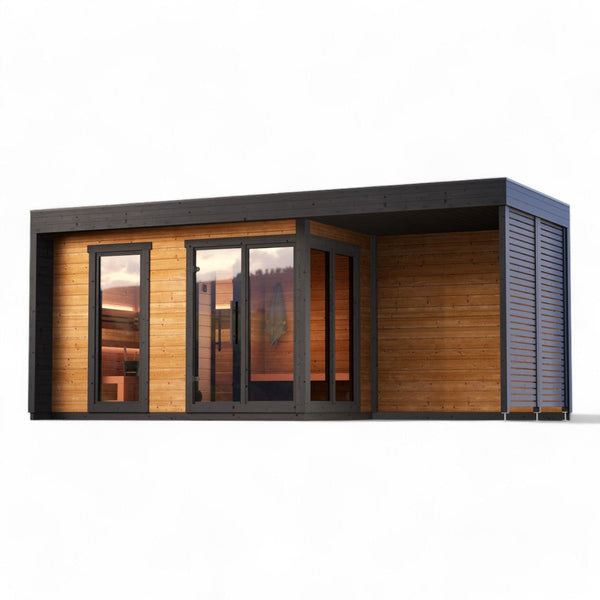

Leil® Patio L Plus 5 Person Outdoor Sauna

Electrical Installation – Important Information

If you hire our installation team to build your sauna, please note that internal electrical wiring is not included and must be completed by a certified electrician.

Our installation team will:

• Mount the sauna heater to the wall (where applicable)

• Attach the LED light strips to the benches

However, the following must be completed by a qualified electrician:

• Final wiring and connection of the heater

• Final wiring of the LED lighting

• Installation and wiring of external control panels, door sensor, thermostat, and any other electrical components (not applicable for manually controlled heaters such as the Harvia Vega BC60).

Electrical Supply Requirements

A sauna heater typically requires a dedicated electrical supply, similar to those used for electric showers or cookers.

Most domestic sauna heaters in the UK operate on a single-phase 230V supply. The current draw can be calculated using the following formula:

Watts ÷ Volts = Amps

Example:

6kW (6000W) ÷ 230V = approximately 26 Amps

Below is a general guide for domestic sauna heaters:

Heater Power - Current Draw - Suggested Cable Size (Single-Phase)

2.3 kW - 10 Amps - 1.5 mm²

3.0 kW - 13 Amps - 2.5 mm²

3.6 kW - 15 Amps - 2.5 mm²

4.5 kW - 19 Amps - 2.5–4.0 mm²

6.0 kW - 26 Amps - 4.0 mm²

8.0 kW - 35 Amps - 6.0 mm²

9.0 kW - 40 Amps - 6.0 mm² (or higher, depending on cable run)
Cable size depends on cable length, installation method, and other on-site factors. Always defer to your electrician’s judgment.

We strongly advise that installation is carried out by a fully qualified electrician, and that all work complies with current Government regulations and wiring standards (e.g., BS 7671 in the UK).

Sauna Heater Manuals

For exact electrical requirements of each heater please refer to the installation manuals below. If you provide these to your electrician, they should be able to advise you of the necessary wiring.

Mondex Tahko Installation Manual

Harvia Cilindro Installation Manual

Huum Hive Installation Manual

Harvia M3 Installation Manual

Huum Hive Flow Installation Manual

How to wire a HUUM Heater with a Single Phase Supply

HUUM UKU Controls Manual

UKU Glass Appendix

Leil saunas are delivered in a pallet by default, and come with detailed installation instructions.

To protect the sauna’s base frame, it is recommended to install the sauna above ground level. Place a water-resistant material, such as bitumen strips, between the base frame and the surface to prevent direct contact with the ground.

You can read the full instructions here.

Delivery Information

Delivery to your doorstep is free; however, unloading and positioning are not included in the price. Our sauna pallets are large, typically weighing around a tonne, and arrive on a flatbed truck. Special consideration is needed for unloading.

Flat Pack / DIY Assemblies

For flat pack deliveries, you have two options for unloading: by hand or with a forklift. We strongly recommend hiring a forklift as it is quicker and much safer. If you need help finding a forklift hire service in your area, we can arrange this for an additional fee.

If you choose to unload by hand, we recommend having at least two, preferably three people, to safely and efficiently unload each piece.

Assembled Deliveries

Assembled saunas cannot be offloaded by hand. Depending on access, you have three options: forklift, HIAB, or crane.

• Forklift: If there is enough space to move the sauna from the truck to its final position, a forklift is the most cost-effective option.

• HIAB: For lifting the sauna over a fence or wall near the road, a HIAB is a practical and affordable choice.

• Crane: If your sauna’s final position is far from the road and lacks forklift access, a crane will be necessary.

If you’re unsure of the best solution, feel free to contact us for advice or assistance in finding the right option.

At Heracles Wellness, we are confident in the quality of the Leil® products we offer. That’s why we provide a warranty on all Leil® products, with the warranty period depending on who carries out the installation:

• 24 months when the product is installed by the Heracles Wellness Install Team

• 12 months when the product is installed by the client’s own carpenter or installer

Full warranty terms can be found in the user manuals, but the main points are below:

• The warranty covers material and manufacturing defects from the date of delivery.

• The warranty applies only where the product has been used and maintained in accordance with the relevant user manuals.

• Warranty periods may differ for products mounted on trailers and for commercial-use products.

• The warranty does not cover natural characteristics of wood, including discolouration, dimensional changes, or cracking caused by fluctuating or excessive humidity.

• The warranty does not cover normal wear and tear, or damage caused by improper installation, misuse, or incorrect storage.

• Weather-related damage, including damage caused by thunder, is not covered.

• Damage resulting from incorrect installation by the client or their chosen installer is excluded from cover.

• The warranty will be void if unauthorised repairs or modifications are carried out, or if the product is used for anything other than its intended purpose.

• To make a warranty claim, any defect must be reported to the seller within 7 days of discovery.

Contact us

For any warranty-related queries or to submit a claim, please contact us at info@heracleswellness.co.uk.

Returns and Refunds Policy for Made-to-Order Saunas

At Heracles Wellness, we take pride in offering high-quality, made-to-order saunas tailored to your unique needs. Due to the bespoke nature of these products, our returns and refund policy is designed to reflect the custom craftsmanship involved.

Why Returns Are Limited for Made-to-Order Saunas

Made-to-order saunas are personalised and manufactured based on specific customer requirements. As such, these items cannot be resold or restocked, which is why we are unable to accept returns or offer refunds once fabrication has begun.

We encourage you to carefully review all details of your order before confirming, including dimensions, features, and finishes.

Our Policy in Detail

• Customisation Acknowledgement: By placing an order for a made-to-order sauna, you acknowledge that this is a bespoke product tailored to your specifications.

• Non-Returnable Items: Once production has started, cancellations, returns, or refunds are not permitted unless the product is defective or damaged upon arrival.

• Damaged or Faulty Products:

• If your sauna arrives with damage or a manufacturing defect, please notify us within 48 hours of delivery.

• We will assess the issue and may offer a repair, replacement, or refund, depending on the situation.

• Order Review: We strongly recommend double-checking all measurements and customisations to avoid errors.

• Right to Cancel (Prior to Fabrication): You may cancel your order before fabrication begins, subject to an administration fee.

Relevant Consumer Laws

Our policy aligns with your rights under UK consumer protection laws, including:

• Consumer Rights Act 2015: This law ensures products must be of satisfactory quality, fit for purpose, and as described. If your sauna does not meet these standards, we will take appropriate action to resolve the issue.

• Consumer Contracts (Information, Cancellation, and Additional Charges) Regulations 2013:

• Bespoke and made-to-order products are exempt from the standard 14-day cancellation period for online sales.

• However, your rights remain protected if the product is faulty or does not match the agreed-upon specifications.

How to Contact Us

If you have concerns about your order, please contact us at info@heracleswellness.co.uk. We’re happy to assist and ensure your satisfaction with our products.
