- Best for
- Smaller patios, couples and buyers who want the simplest 13A Equinox option.
- Power
- 13A plug-and-play
- Capacity
- 4 people
- Massage jets
- 24 hydro jets
- Dimensions
- 2000 × 1640 × 760 mm
- Water capacity
- 850 L

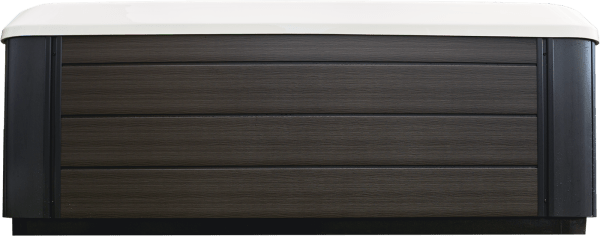

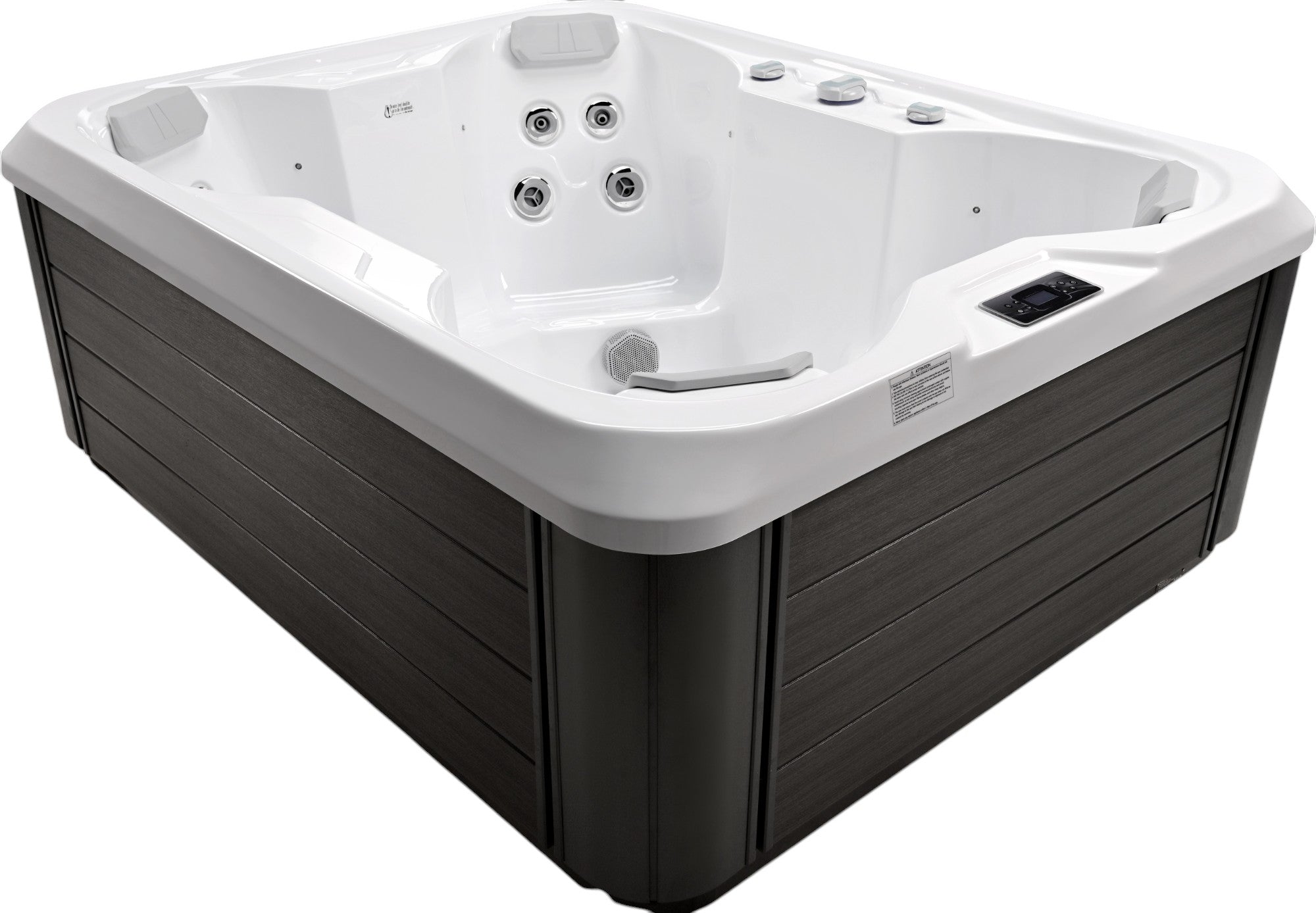

Equinox EQ130 Lite · 13 Amp
Four real seats in a footprint that leaves some garden behind
The EQ130 Lite is the compact Equinox: an all-seater hot tub for couples, small families and tighter patios. Its 24 hydrotherapy jets, dedicated circulation pump and simple 13 Amp supply make daily use easy to justify.
WhatSpa? Best Buy Award winner
Independent recognition for the things you feel every time you use it
WhatSpa? praised the EQ130 Lite for its compact footprint, comfort, punchy hydrotherapy, energy-efficient insulation and value for money, selecting it for its Best Buy Awards.
Read the independent WhatSpa? verdict
Designed around real use
Compact outside. Surprisingly sociable once you are in.

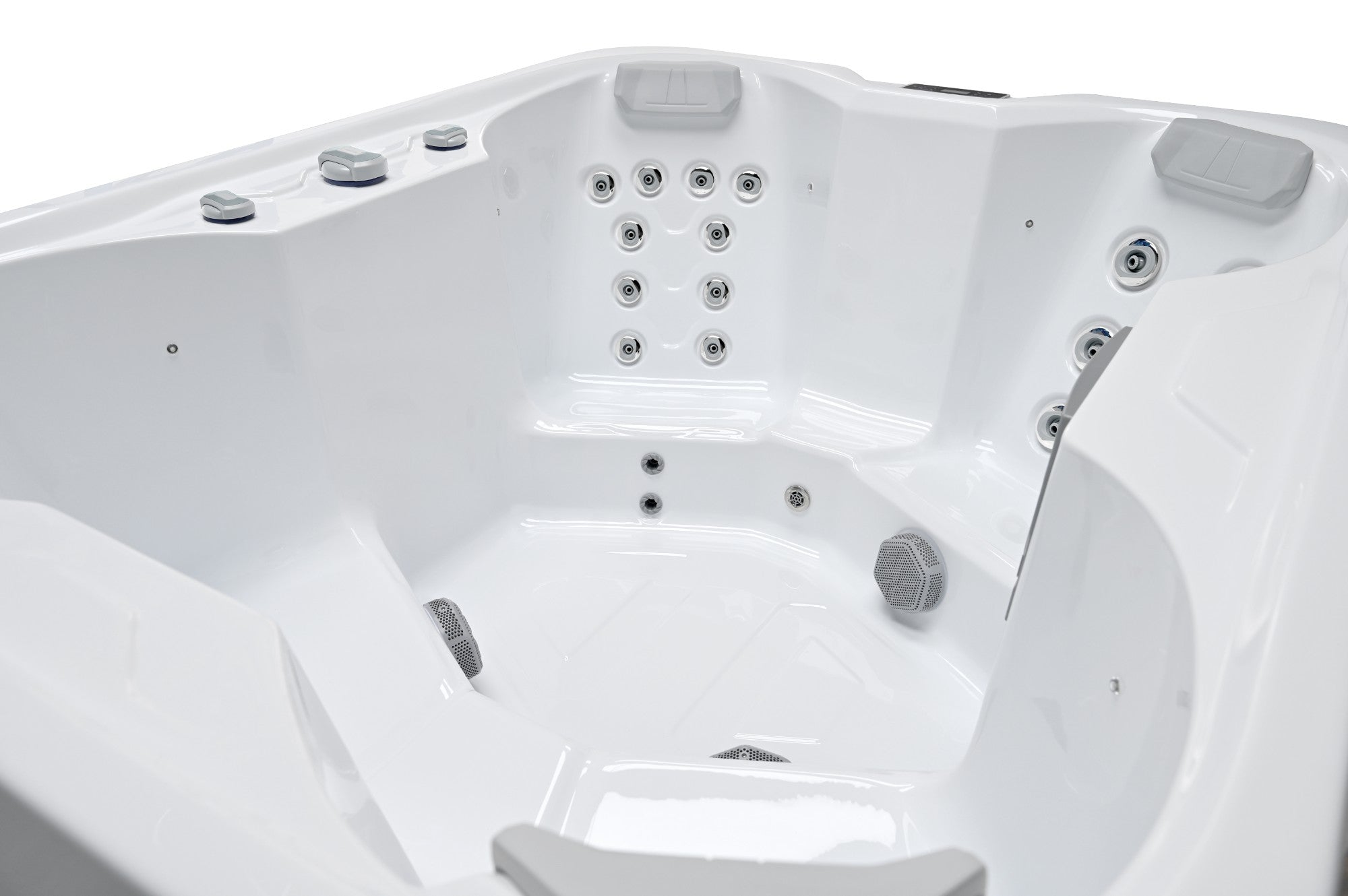

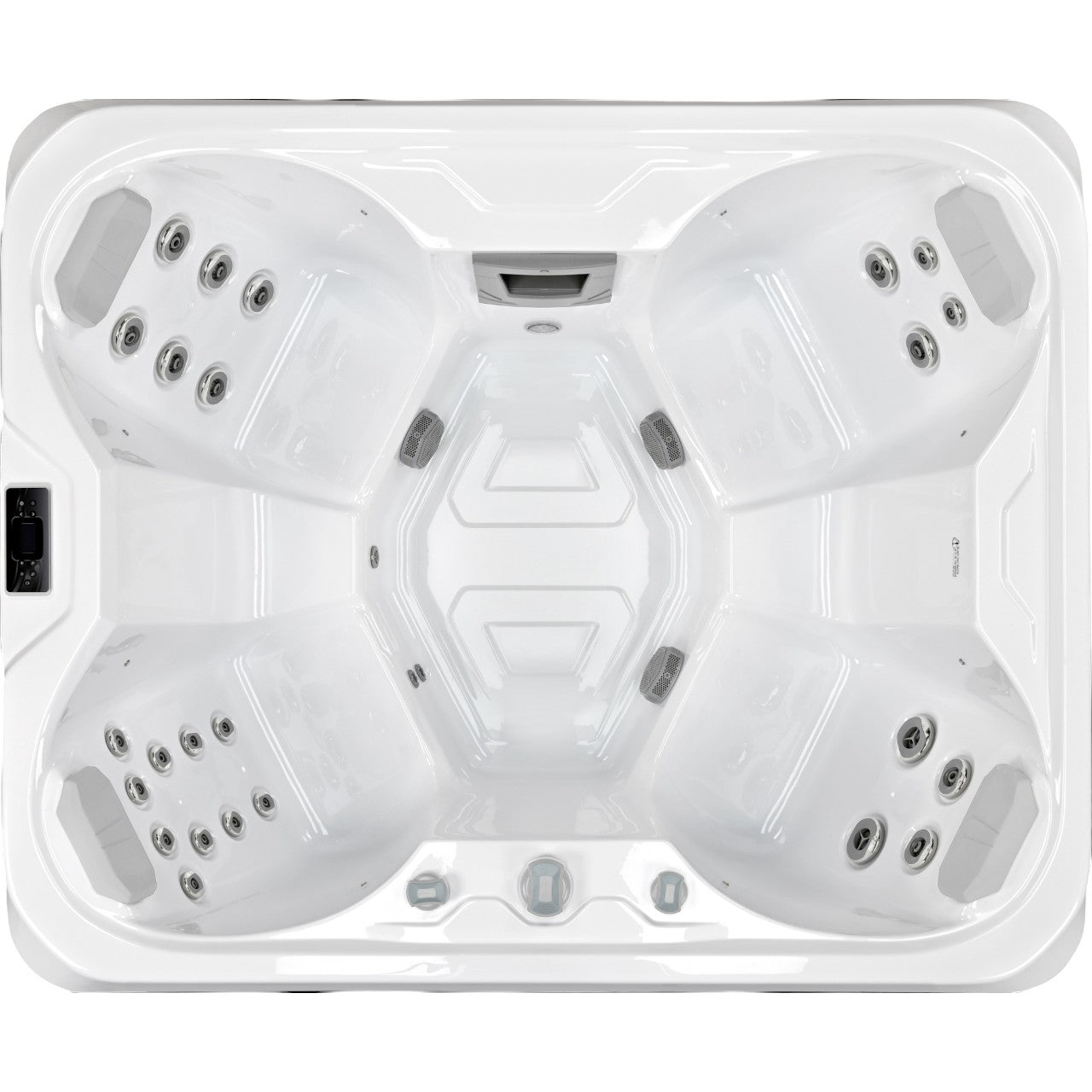

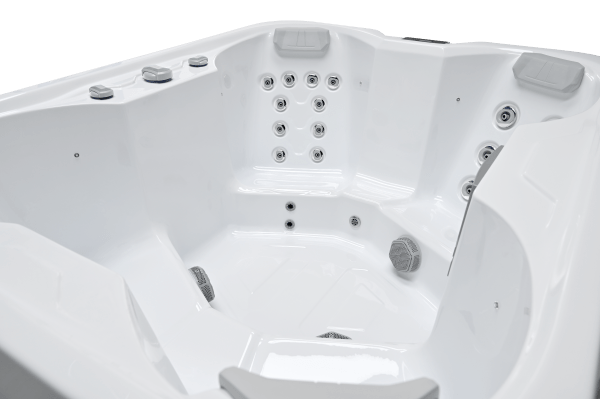

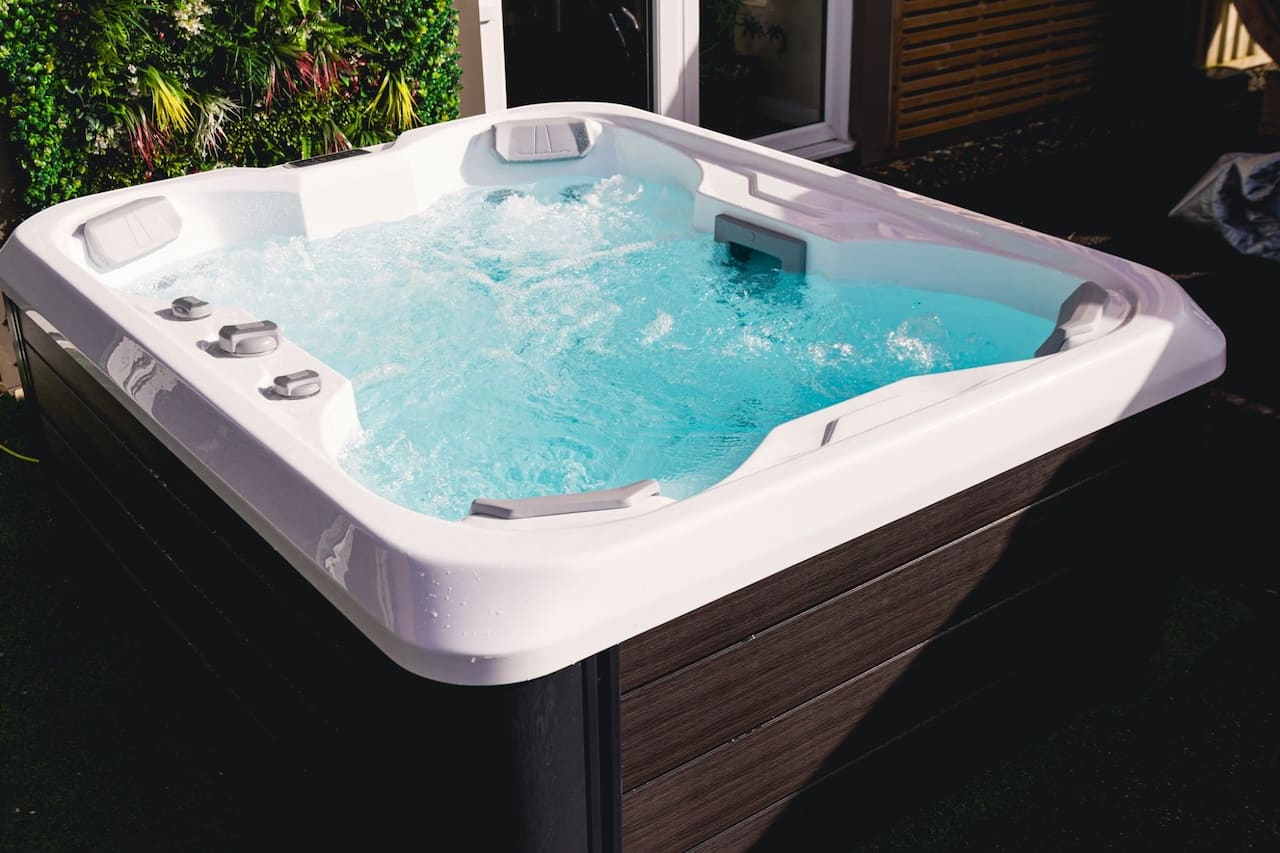

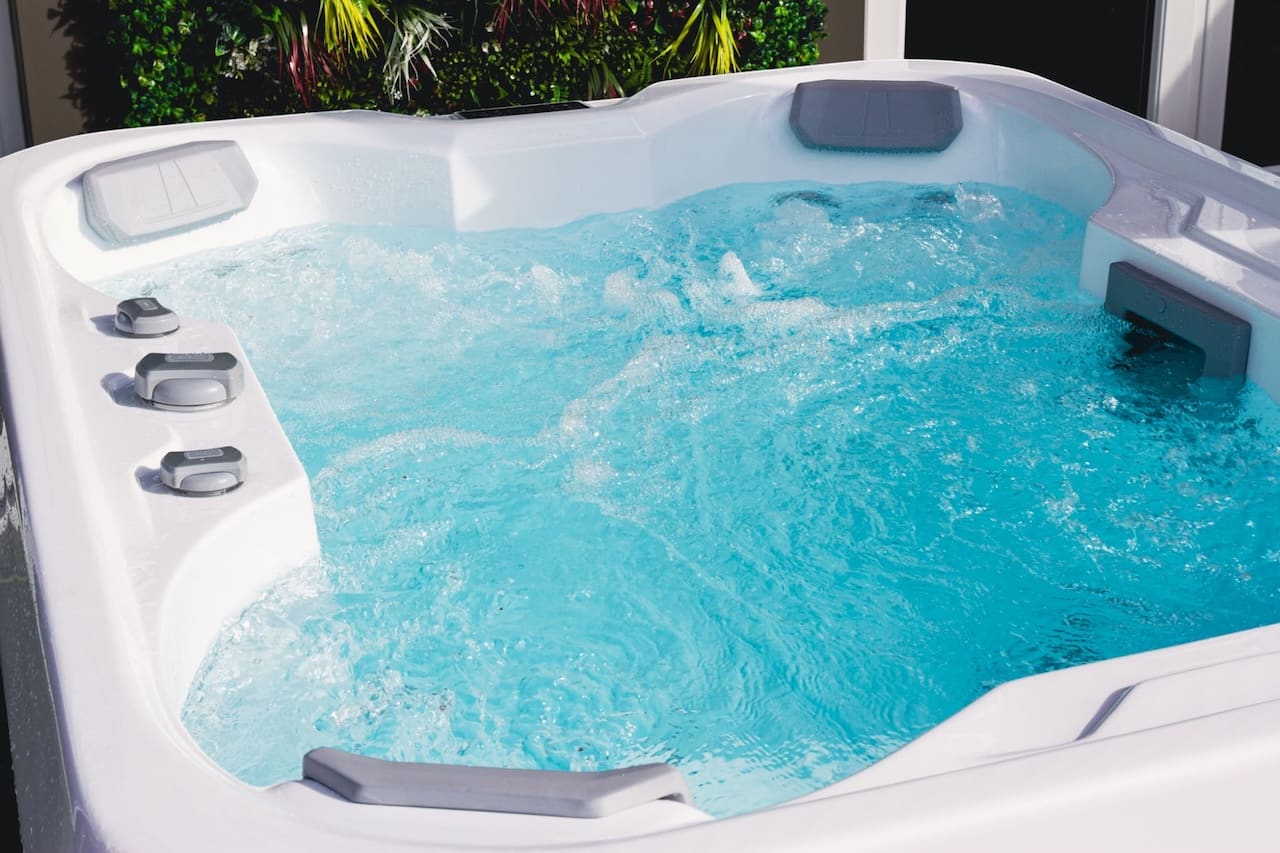

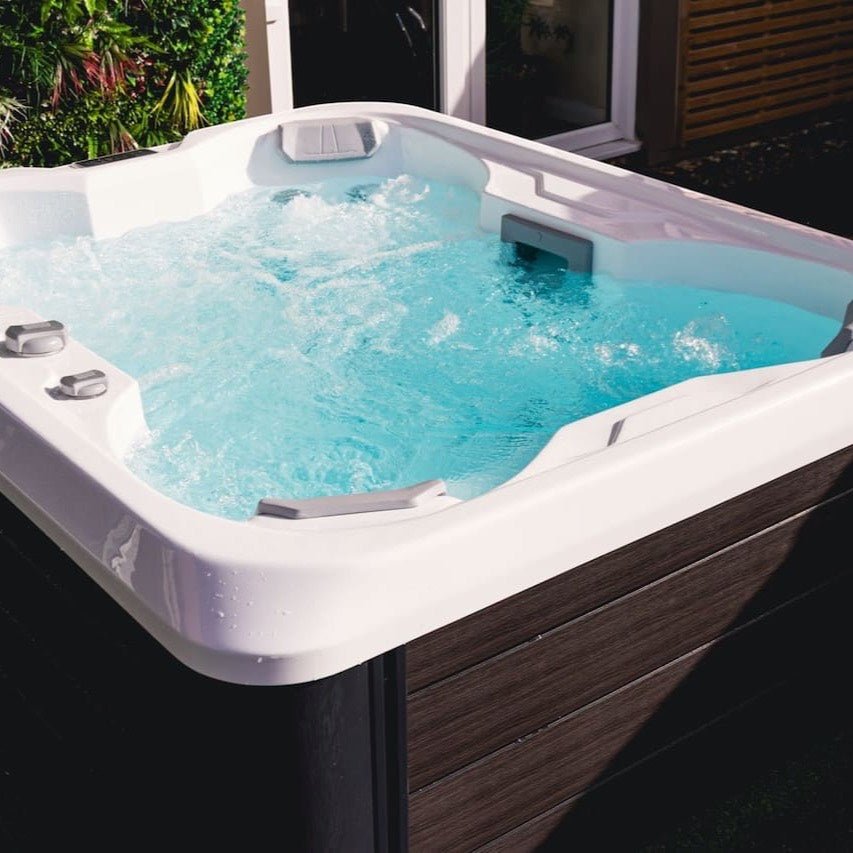

At 2 metres long and only 1.64 metres wide, the EQ130 Lite makes good use of awkward garden space without turning the soak into a squeeze. Four upright seats let everyone face one another, whilst the lower 760 mm height also helps with access and placement.
The massage
Hydrotherapy that earns its footprint

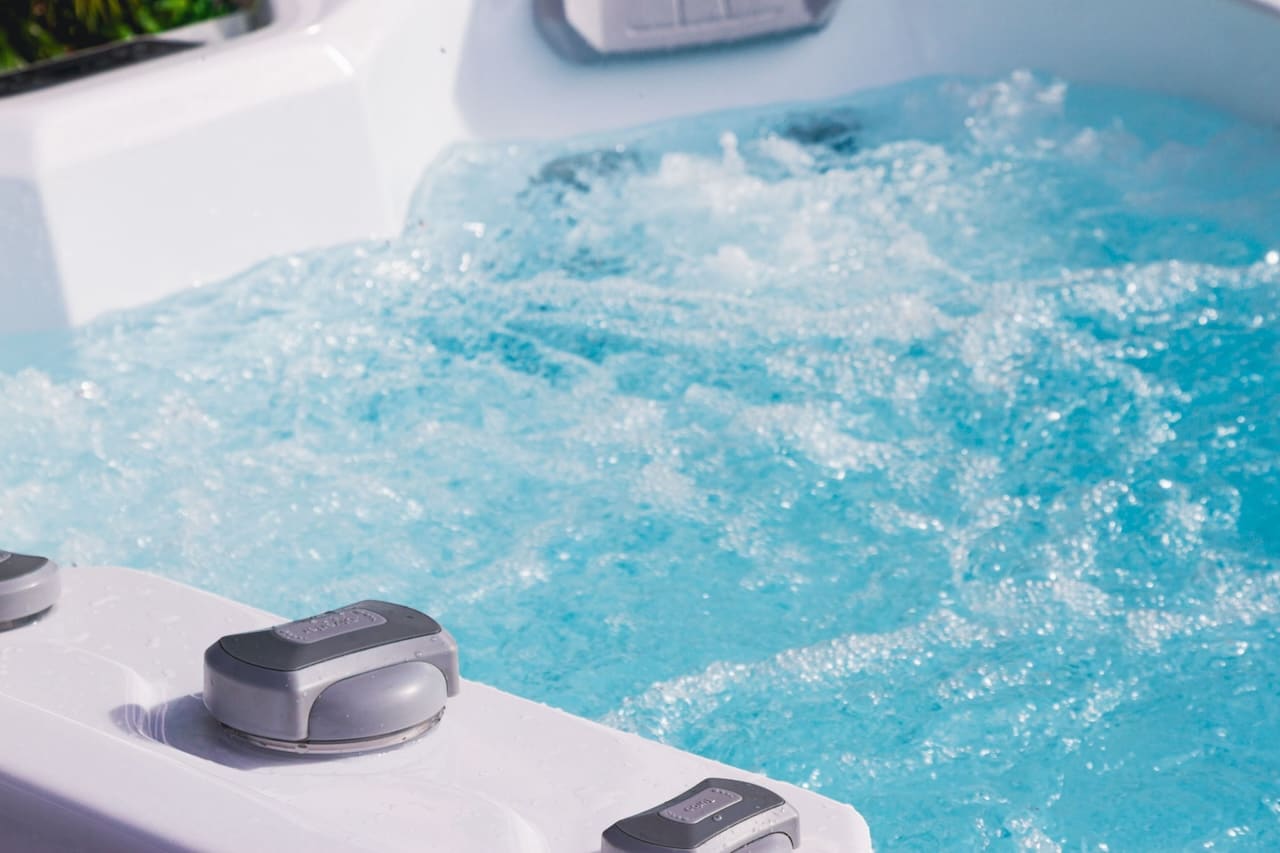

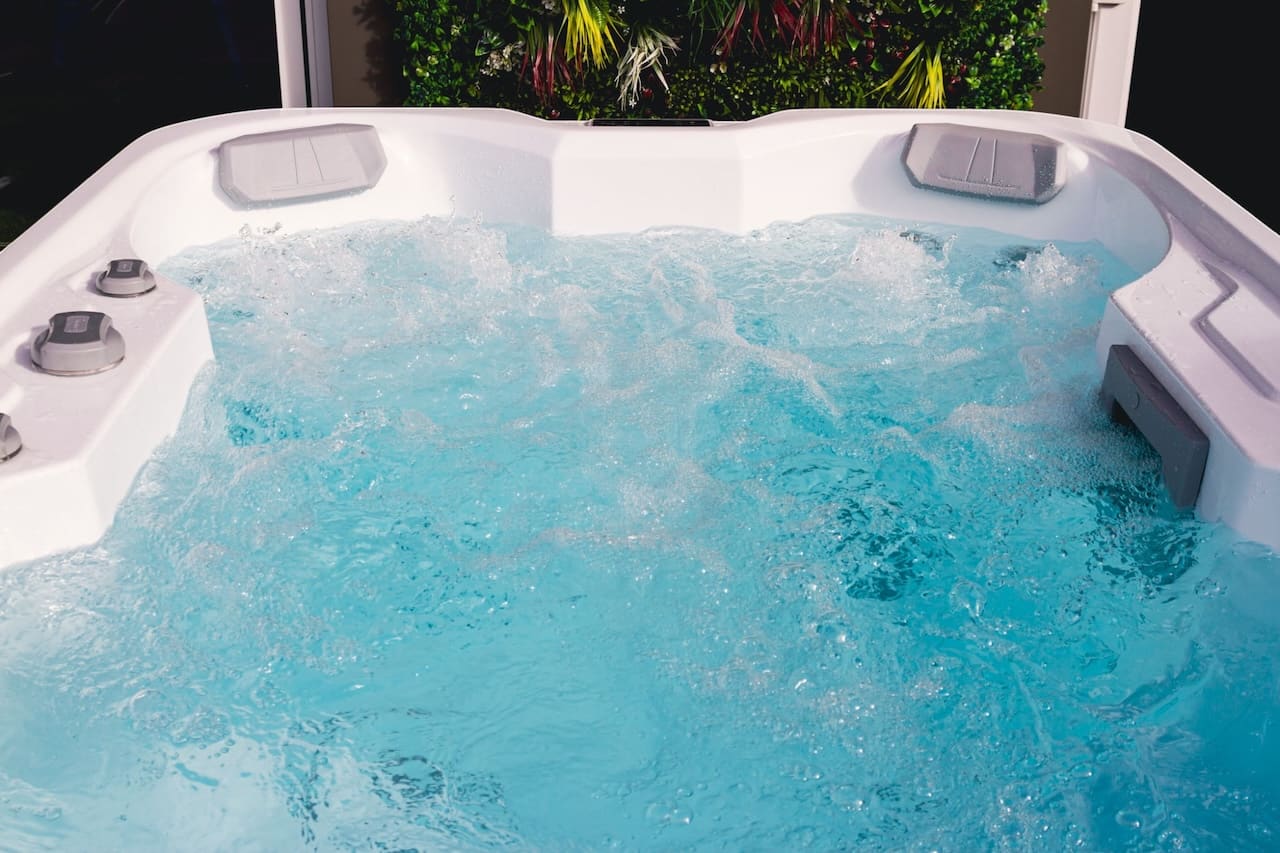

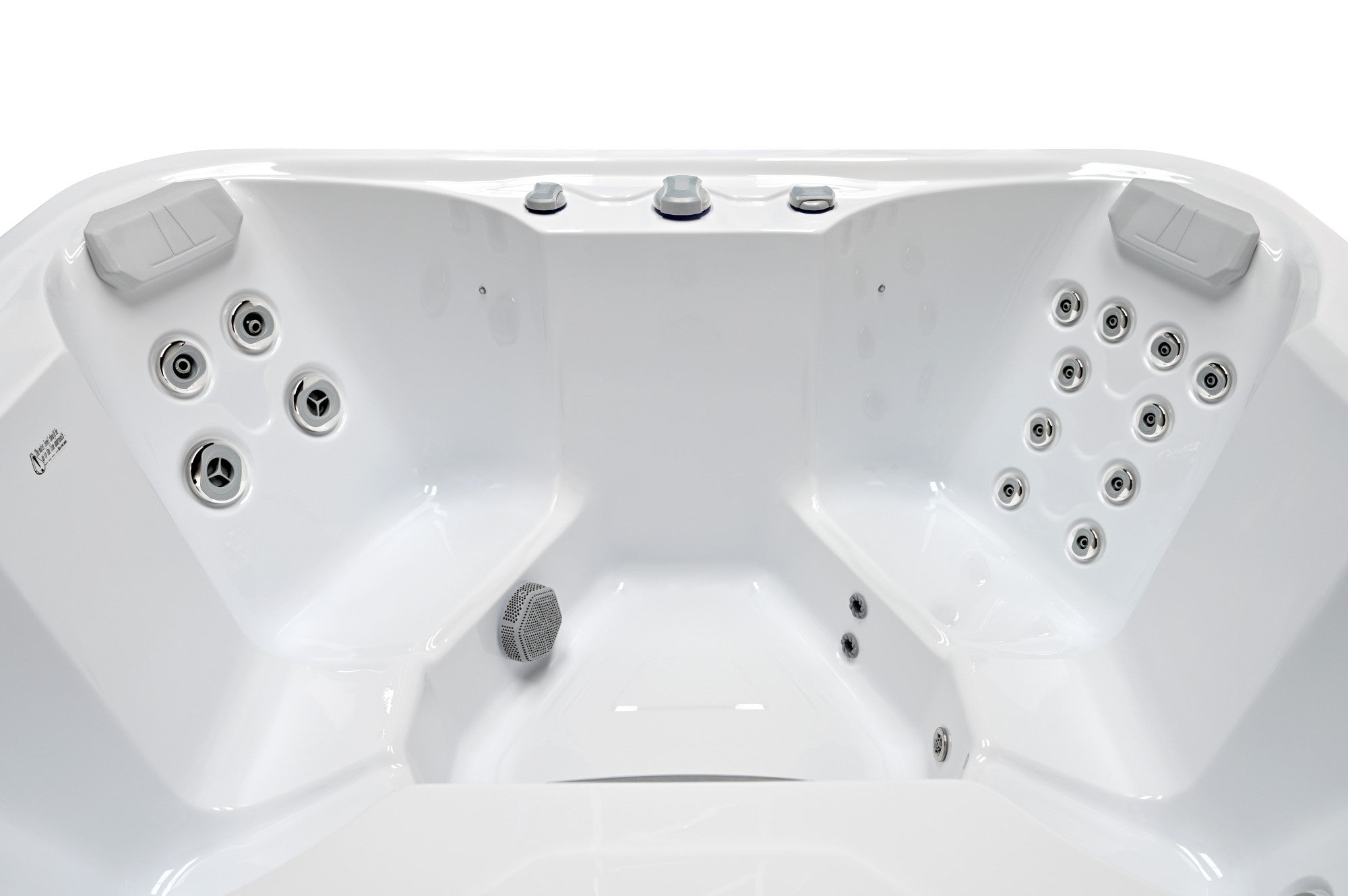

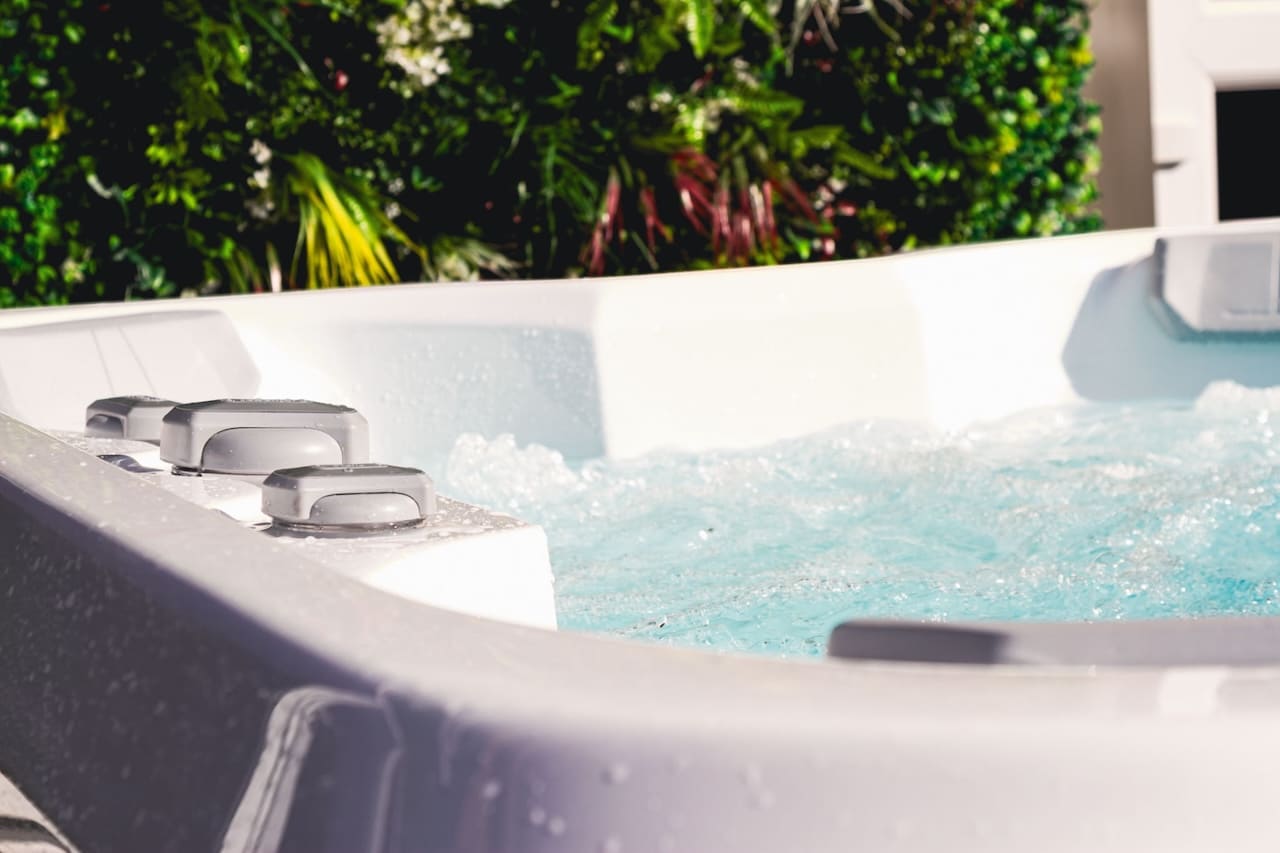

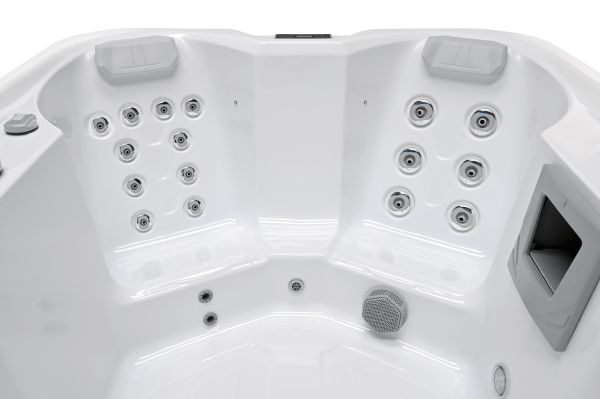

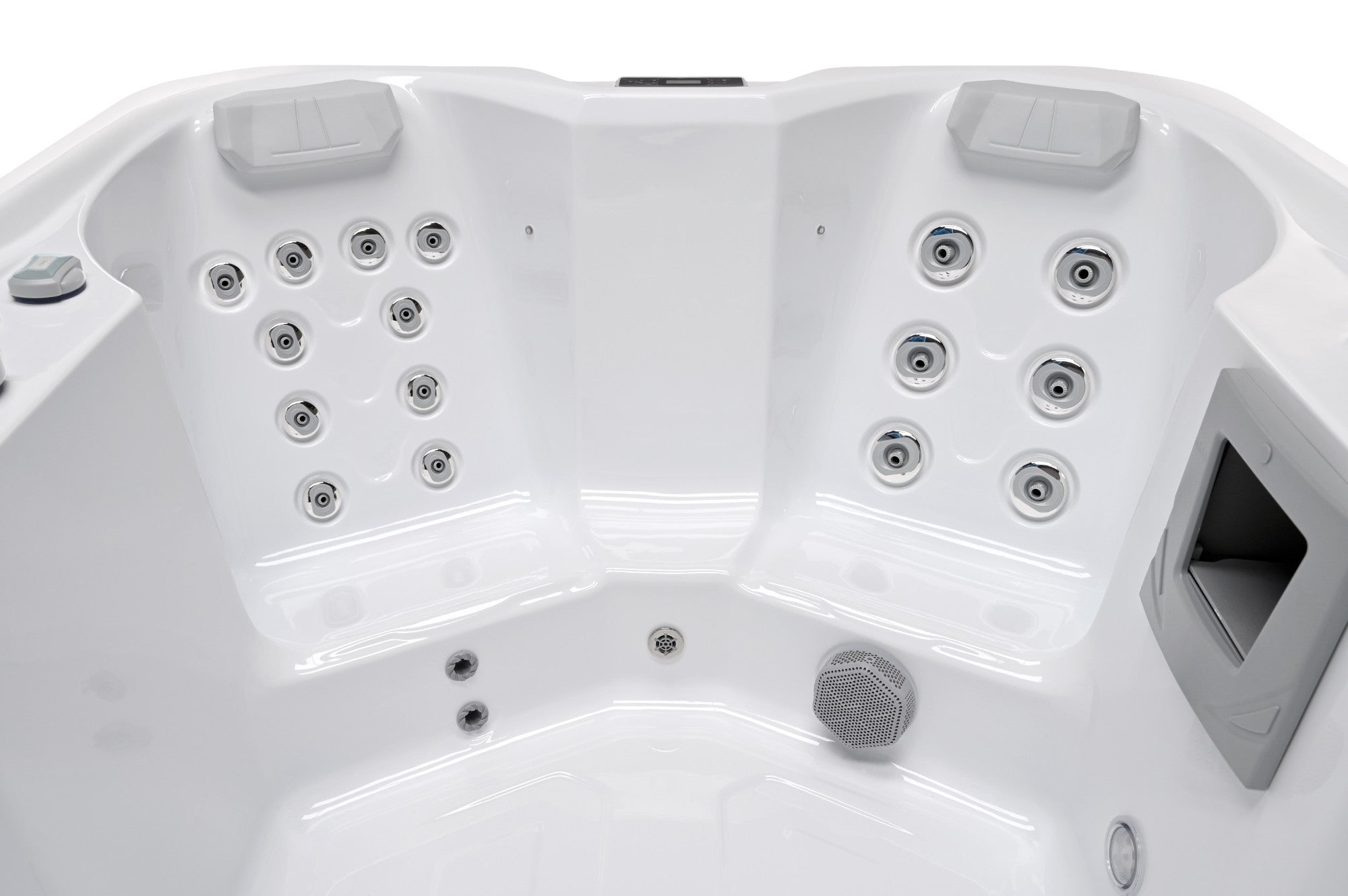

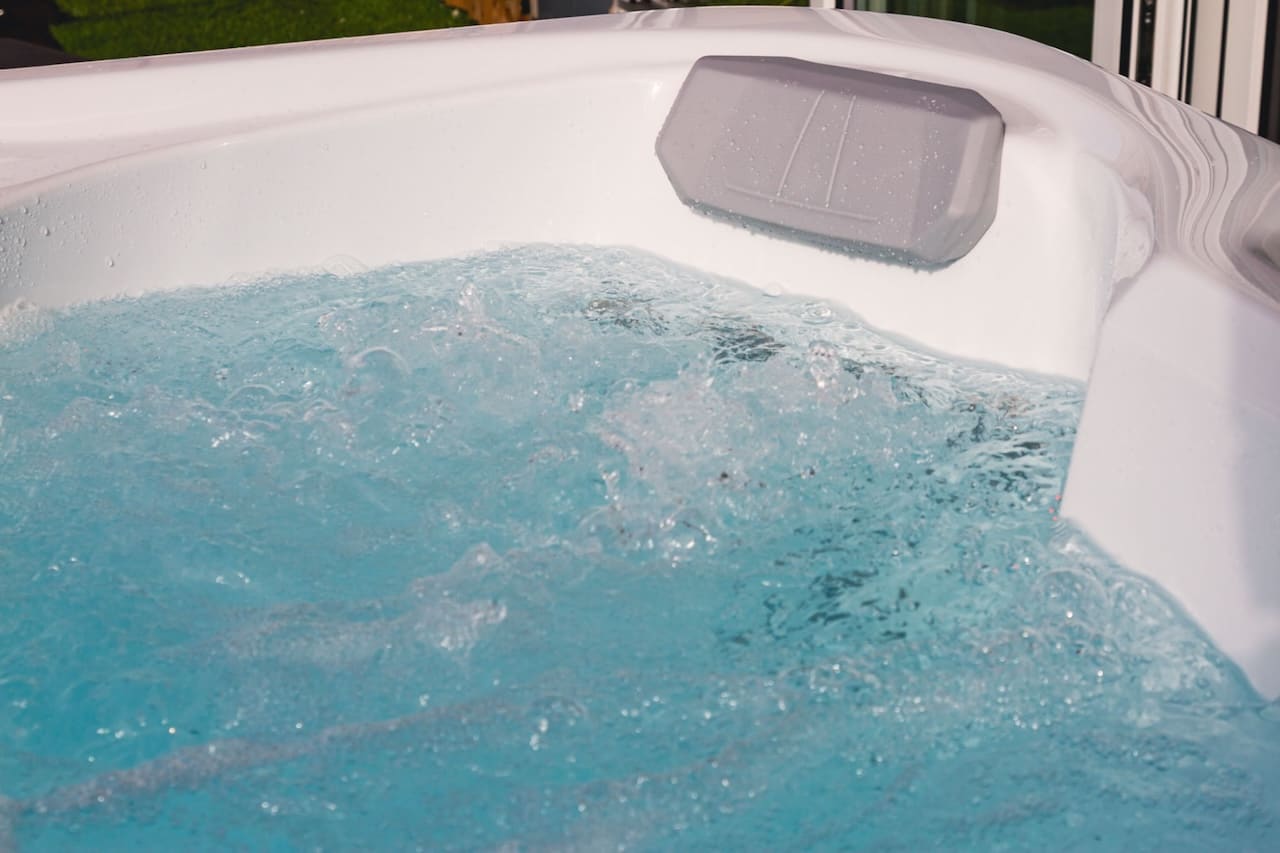

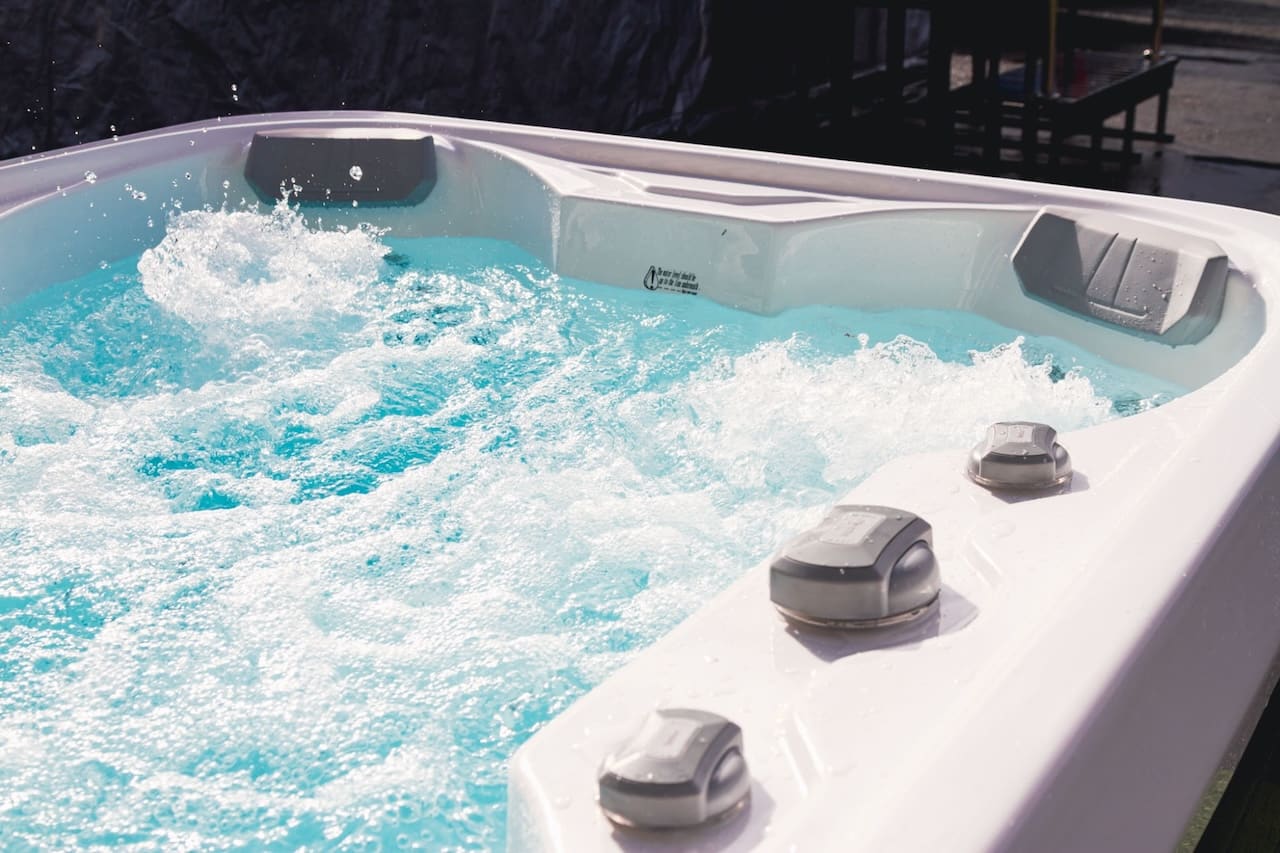

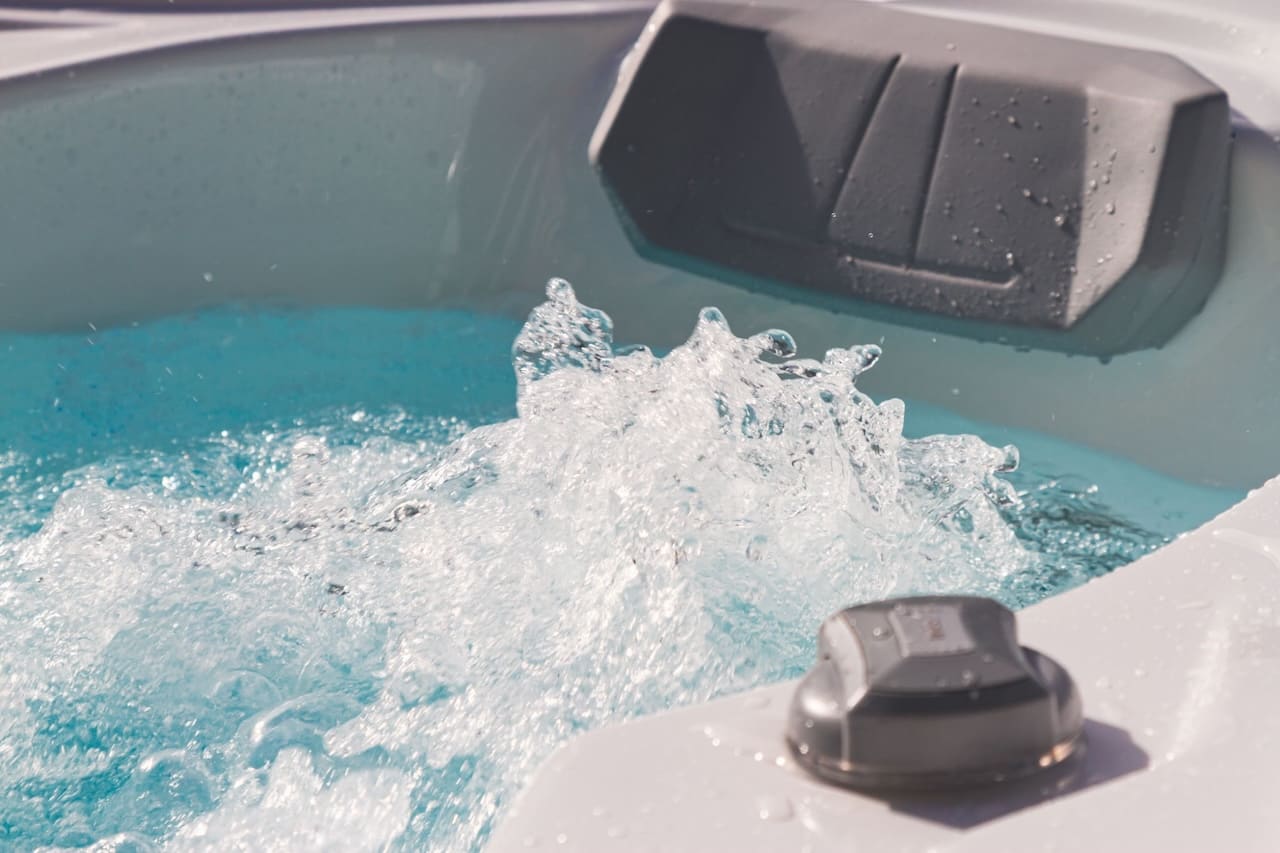

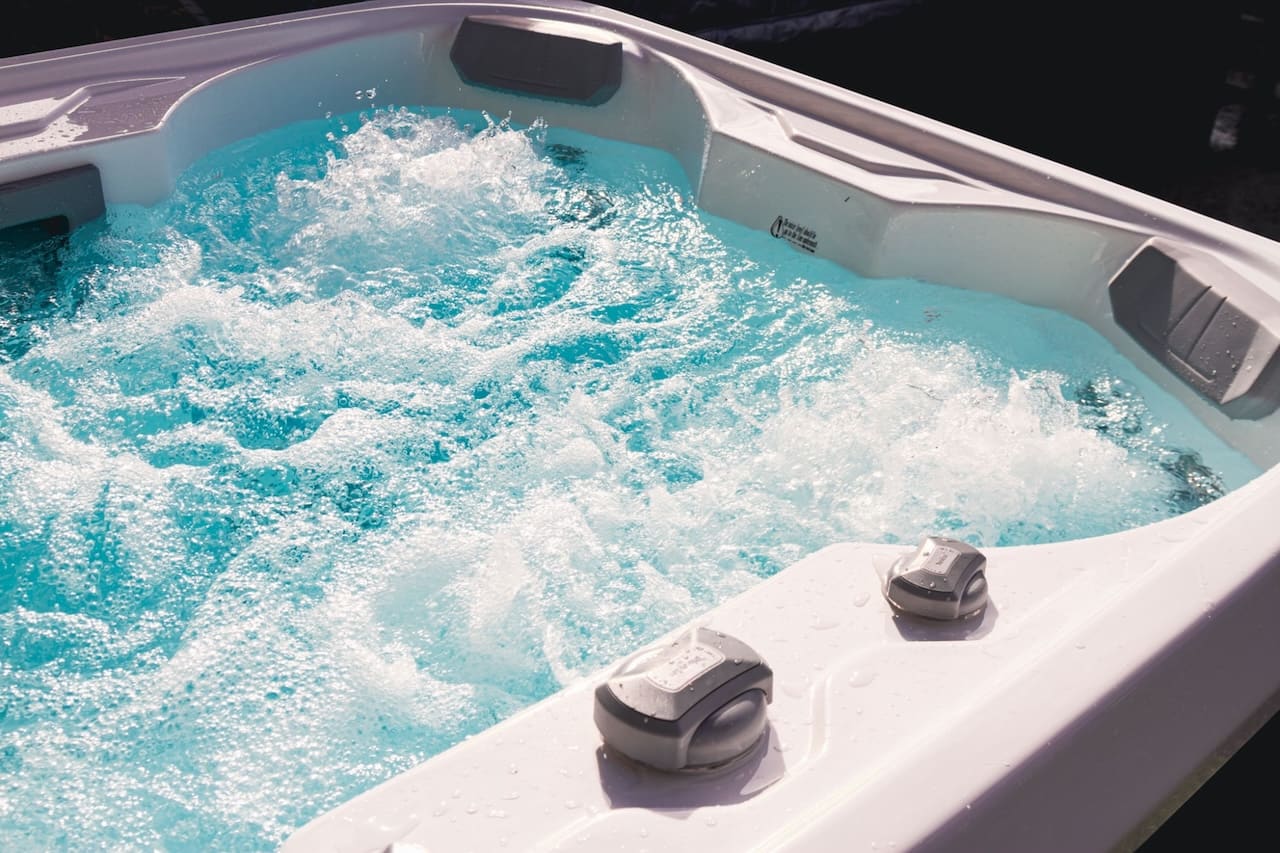

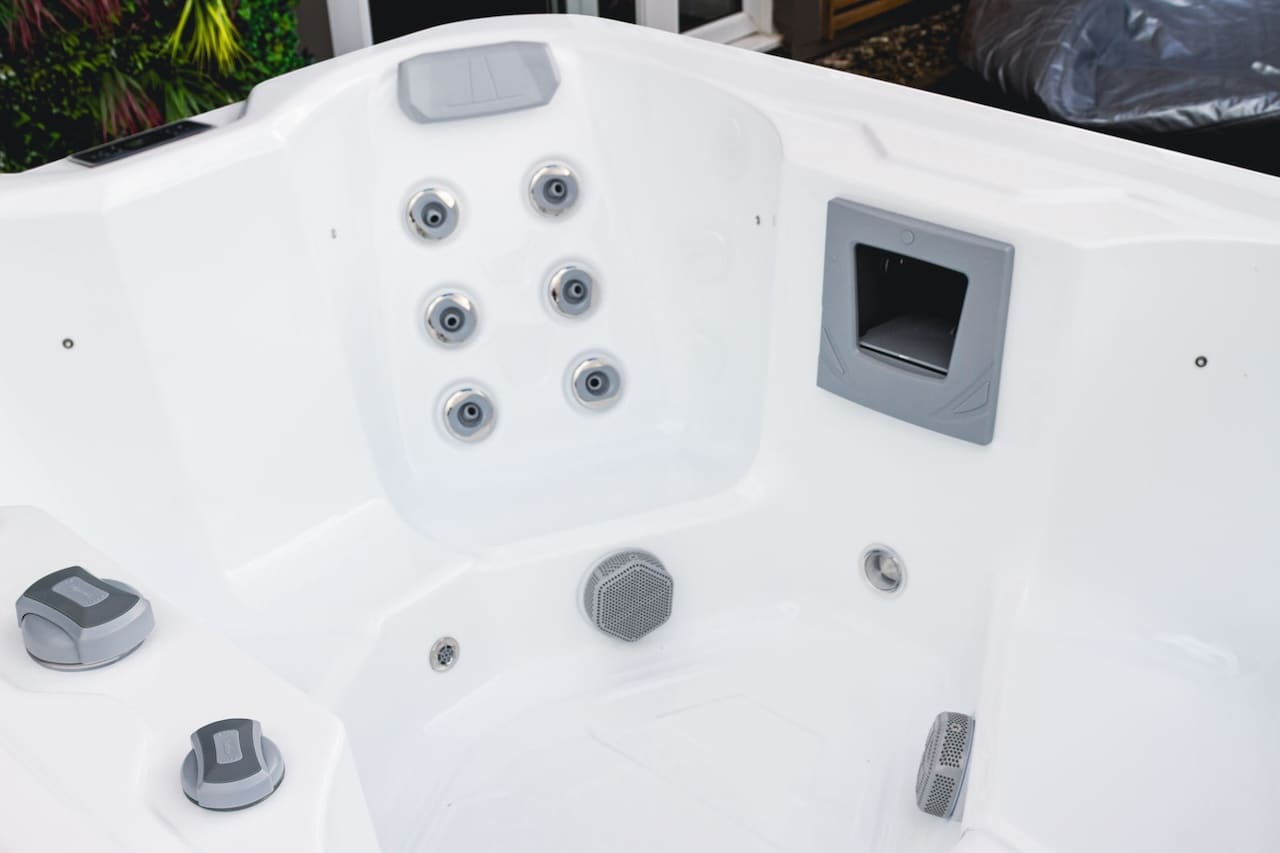

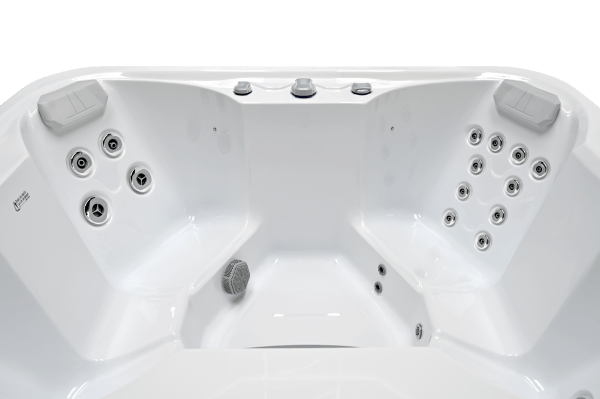

One LX-LP300 massage pump drives 24 rotary and directional jets across four distinct seats. It is a balanced, everyday massage rather than a tub built around one oversized lounger.
Heat that stays put
Edge-foam shell insulation, reflective skirt insulation, an insulated base and the supplied cover work together to reduce avoidable heat loss.
Cleaner water, less faff
A separate circulation pump, Pure Blue filtration and an ozone mixing tube support steady water movement and day-to-day clarity.
Evenings look better
Underwater, waterline and cabinet LEDs bring the atmosphere without affecting the clean Alpine White shell and dark cabinet finish.
Control and connectivity
Set the soak without turning it into a technology project

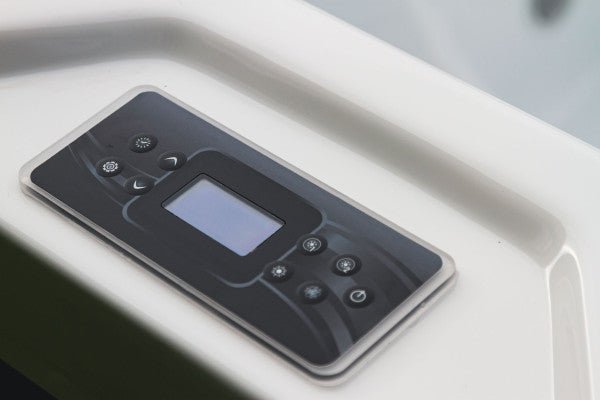

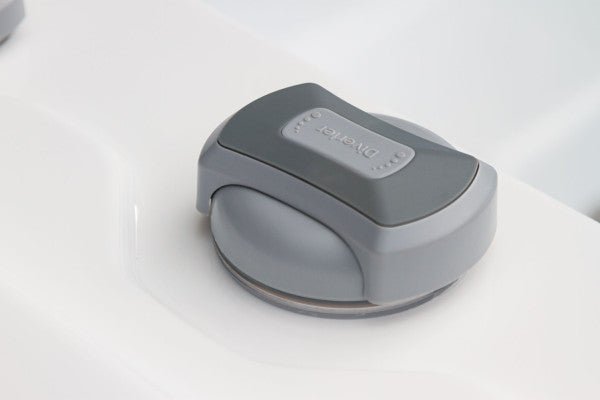

SPATECH CA100 with MP31 controls puts temperature, filtration, jets and lighting in one place. Add the optional Equinox media pack for app-based WiFi control and discreet Bluetooth audio.

Included in the price
Your tub arrives with the useful bits
Insulated cover
Helps hold heat between sessions and protects the water when the tub is not in use.
Hot-tub steps
A safer, easier first step into a shell that sits up to 920 mm high.
Winter bag
Full outer protection for storage, transport and the less charming end of British weather.
1 × Oasis Pure Blue filter
The matched filtration setup for this model is supplied from day one.
Free mainland delivery
Delivery and positioning to a suitable prepared location are included for mainland UK addresses.
Ozone-supported water care
The ozone mixing tube helps the filtration system keep water clearer between routine chemical checks.
Before delivery
A straightforward route from order to first soak
Prepare a solid, level base
The finished base must support the tub, its 850 litres of water and everyone using it. Concrete, reinforced paving or a purpose-built spa base are the usual choices.
Check the whole access route
Measure gates, corners, overhangs and the final position against the 2000 × 1640 × 760 mm cabinet. Speak to us before ordering if access is tight.
Arrange the correct electrics
Use a suitable outdoor, RCD-protected 13 Amp supply. The customer supplies the correctly specified cable and plug; have a qualified electrician confirm the setup before delivery.
No permanent plumbing
Fill with a hose and drain to a suitable point in line with local guidance. Leave service access around the cabinet rather than boxing the tub in.
The numbers
Specifications
| Seating | Four upright seats |
|---|---|
| Dimensions | 2000 × 1640 × 760 mm |
| Water capacity | 850 litres |
| Dry weight | 190 kg |
| Hydrotherapy jets | 24 |
| Massage pumps | 1 × LX-LP300 |
| Circulation pump | LX-WTC50 |
| Control system | SPATECH CA100 with MP31 controls |
| Heater | 2 kW |
| Electrical supply | 13 Amp |
| Water care | Ozone mixing tube |
| Filtration | 1 × Oasis Pure Blue filter |
| Lighting | Underwater, waterline and cabinet LED lighting |
| Fountains | No |
| Shell colour | Alpine White |
| Connectivity | Optional WiFi control and Bluetooth audio |
| Winter protection | Full outer winter bag included |


Make the practical bits easy
Check the space, check the electrics, then get the hot tub you will actually use
Not sure whether the Lite or Pro model suits you, or whether the delivery route works? Send us the details before ordering and we will help you get it right.
Ask Heracles about the EQ130 LiteCompare the Equinox hot tub range
- Best for
- Families wanting a balanced 5-person hot tub without needing a 32A electrical supply.
- Power
- 13A plug-and-play
- Capacity
- 5 people
- Massage jets
- 25 hydro jets
- Dimensions
- 2000 × 2000 × 820 mm
- Water capacity
- 995 L
- Best for
- A roomier 13A spa with twin loungers and extra water volume for longer soaks.
- Power
- 13A plug-and-play
- Capacity
- 5 people, 2 loungers
- Massage jets
- 27 hydro jets
- Dimensions
- 2120 × 2120 × 920 mm
- Water capacity
- 1310 L
- Best for

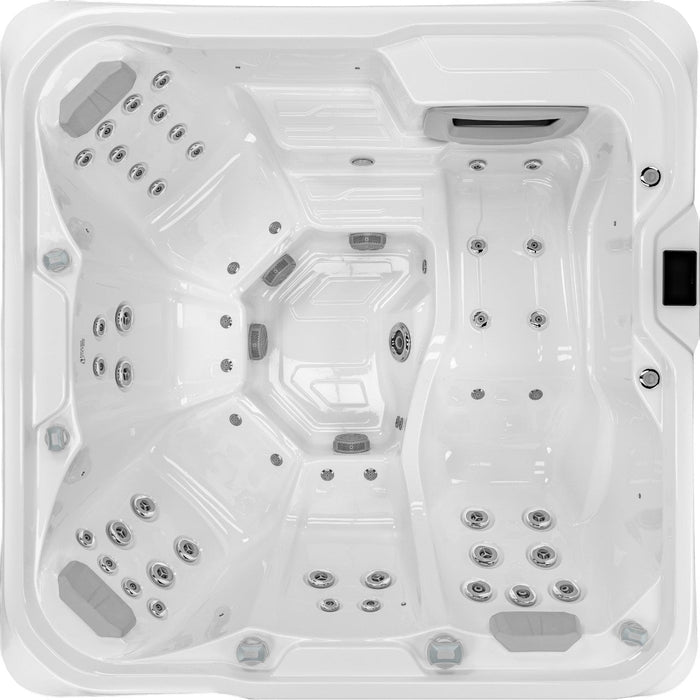

- People who like the EQ360 footprint but want stronger massage performance from a 32A setup.
- Power
- 32A hardwired
- Capacity
- 5 people, 1 lounger
- Massage jets
- 39 hydro + 10 air jets
- Dimensions
- 2000 × 2000 × 820 mm
- Water capacity
- 995 L

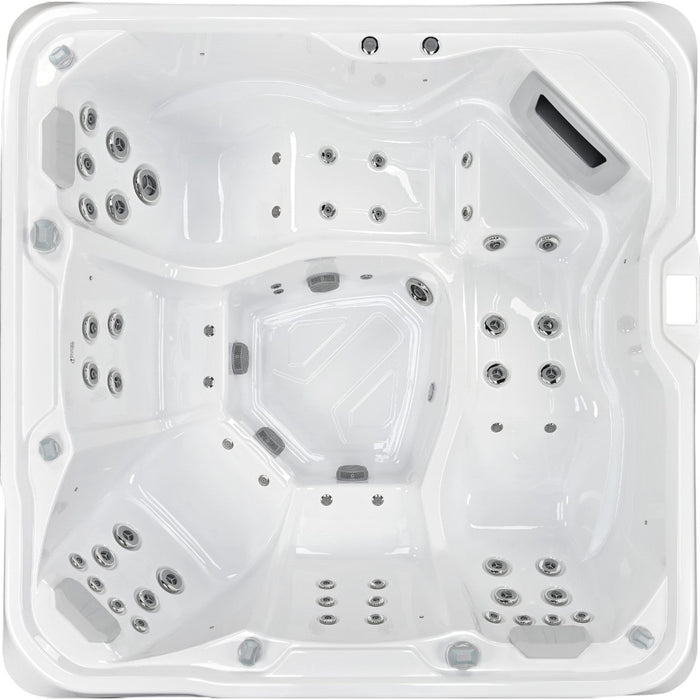

- Best for
- The sweet spot: twin loungers, strong jet output and sensible size for most gardens.
- Power
- 32A hardwired
- Capacity
- 5 people, 2 loungers
- Massage jets
- 43 hydro + 8 air jets
- Dimensions
- 2120 × 2120 × 920 mm
- Water capacity
- 1310 L
- Best for
- Maximum space, deeper water volume and the strongest overall Equinox massage experience.
- Power
- 32A hardwired
- Capacity
- 5 people, 2 loungers
- Massage jets
- 45 hydro + 10 air jets
- Dimensions
- 2300 × 2300 × 920 mm
- Water capacity
- 1610 L
| Model | Most compact
From £3,999.00
| Best 13A starter
From £4,799.00
| Best 13A lounger
From £5,299.00
| Compact Pro
From £5,799.00
| Best all-rounder
From £6,199.00
| Largest Equinox
From £6,999.00
|
|---|---|---|---|---|---|---|
| Best for | Smaller patios, couples and buyers who want the simplest 13A Equinox option. | Families wanting a balanced 5-person hot tub without needing a 32A electrical supply. | A roomier 13A spa with twin loungers and extra water volume for longer soaks. | People who like the EQ360 footprint but want stronger massage performance from a 32A setup. | The sweet spot: twin loungers, strong jet output and sensible size for most gardens. | Maximum space, deeper water volume and the strongest overall Equinox massage experience. |
| Power | 13A plug-and-play | 13A plug-and-play | 13A plug-and-play | 32A hardwired | 32A hardwired | 32A hardwired |
| Capacity | 4 people | 5 people | 5 people, 2 loungers | 5 people, 1 lounger | 5 people, 2 loungers | 5 people, 2 loungers |
| Massage jets | 24 hydro jets | 25 hydro jets | 27 hydro jets | 39 hydro + 10 air jets | 43 hydro + 8 air jets | 45 hydro + 10 air jets |
| Dimensions | 2000 × 1640 × 760 mm | 2000 × 2000 × 820 mm | 2120 × 2120 × 920 mm | 2000 × 2000 × 820 mm | 2120 × 2120 × 920 mm | 2300 × 2300 × 920 mm |
| Water capacity | 850 L | 995 L | 1310 L | 995 L | 1310 L | 1610 L |
| Price from | From £3,999.00 | From £4,799.00 | From £5,299.00 | From £5,799.00 | From £6,199.00 | From £6,999.00 |
| View model | View model | View model | View model | View model | View model |
