- Best for
- Smaller patios, couples and buyers who want the simplest 13A Equinox option.
- Power
- 13A plug-and-play
- Capacity
- 4 people
- Massage jets
- 24 hydro jets
- Dimensions
- 2000 × 1640 × 760 mm
- Water capacity
- 850 L
Equinox EQ360 Lite · 13 Amp
A lounger, five places and the convenience of a 13 Amp supply

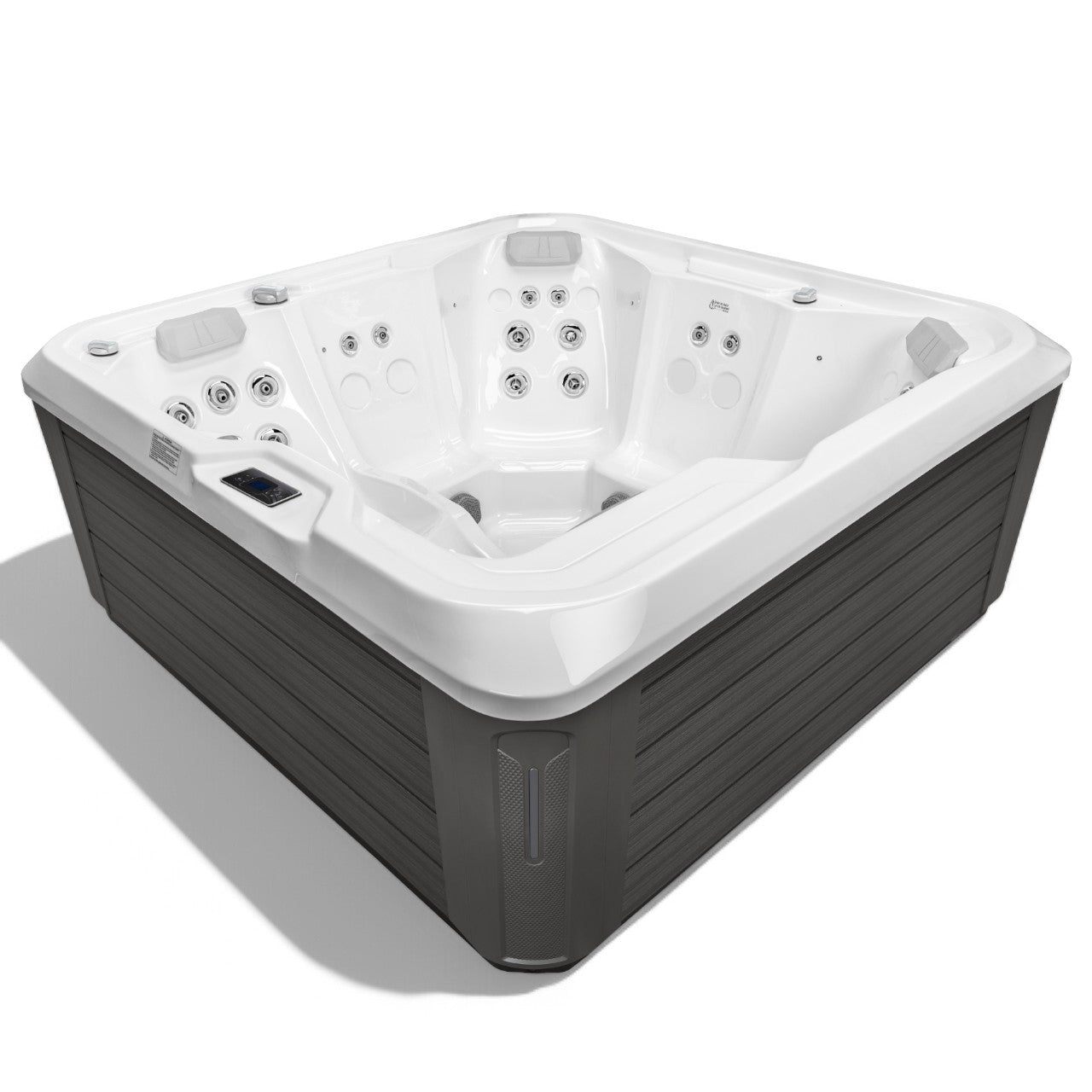

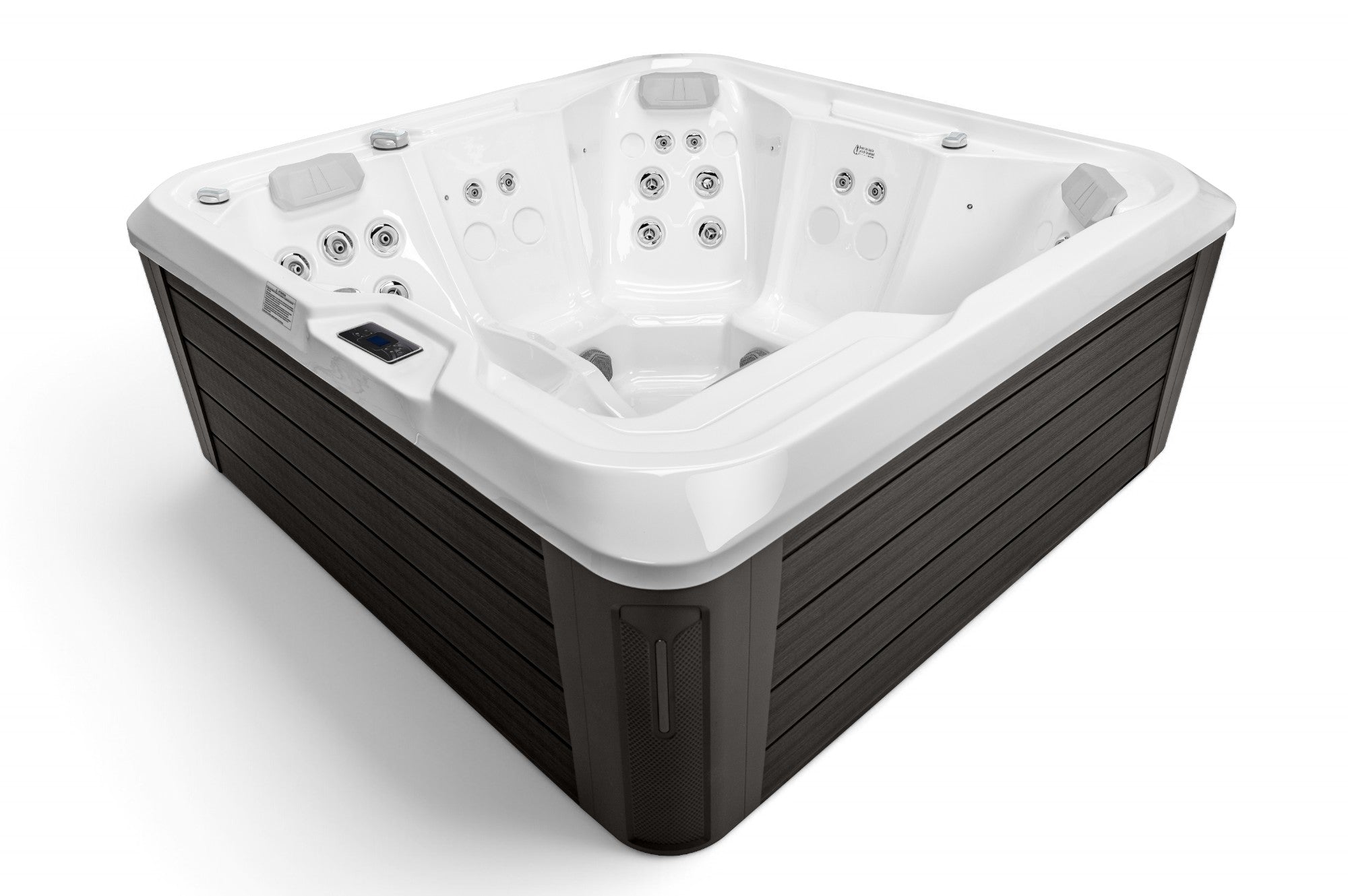

The EQ360 Lite is the easy-going family model: a full 2-metre square shell with four upright seats, one lounger and 25 hydrotherapy jets. It gives you a more versatile seating plan without stepping up to a dedicated 32 Amp installation.
Independent manufacturer approval
A range recognised by the UK’s specialist hot-tub guide
Equinox is listed as a 2026 WhatSpa? Approved Manufacturer, giving buyers an independent trust signal alongside the specification and warranty.
View Equinox at WhatSpa?
Designed around real use
One lounger for stretching out. Four seats for everyone else.

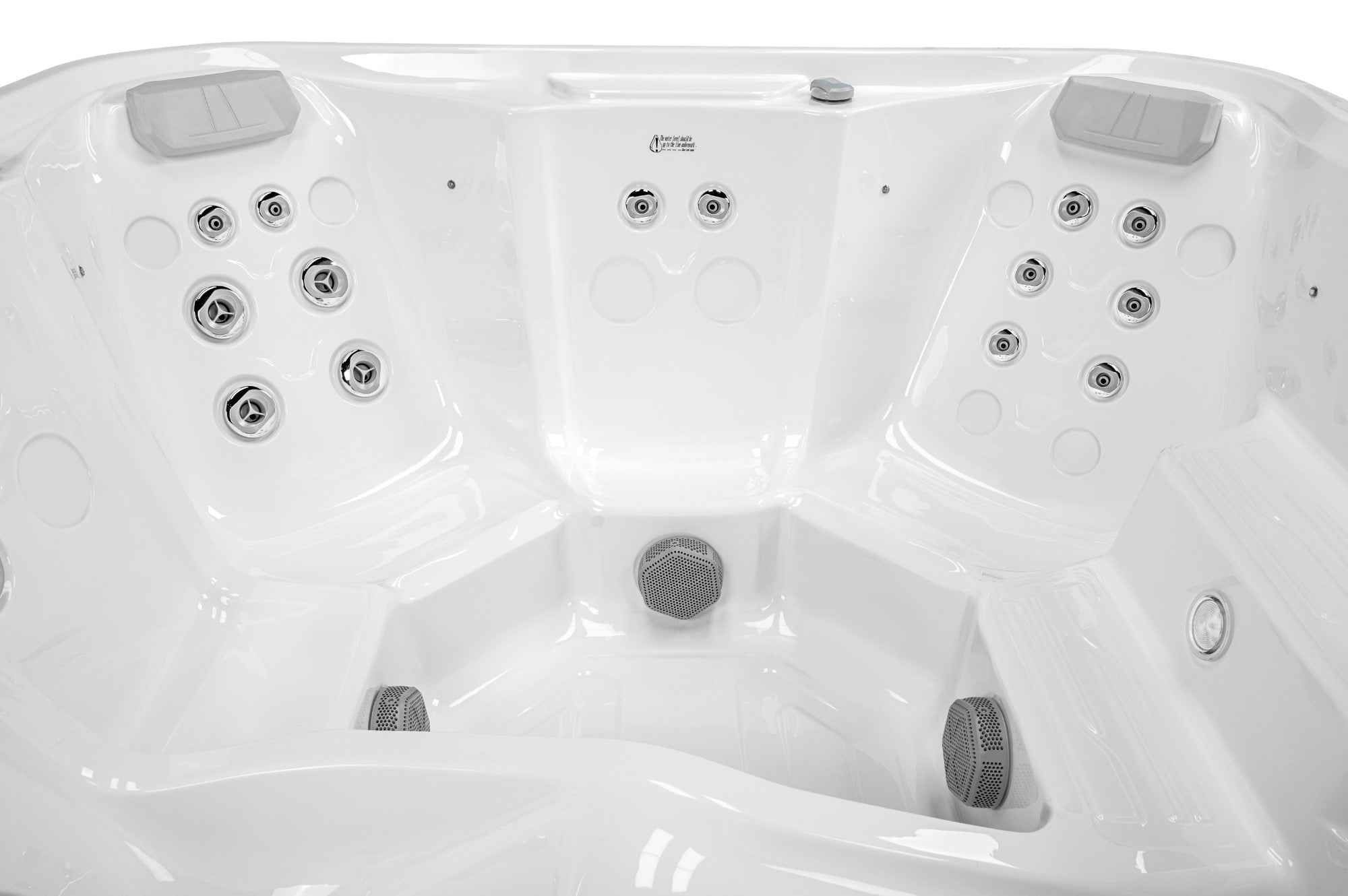

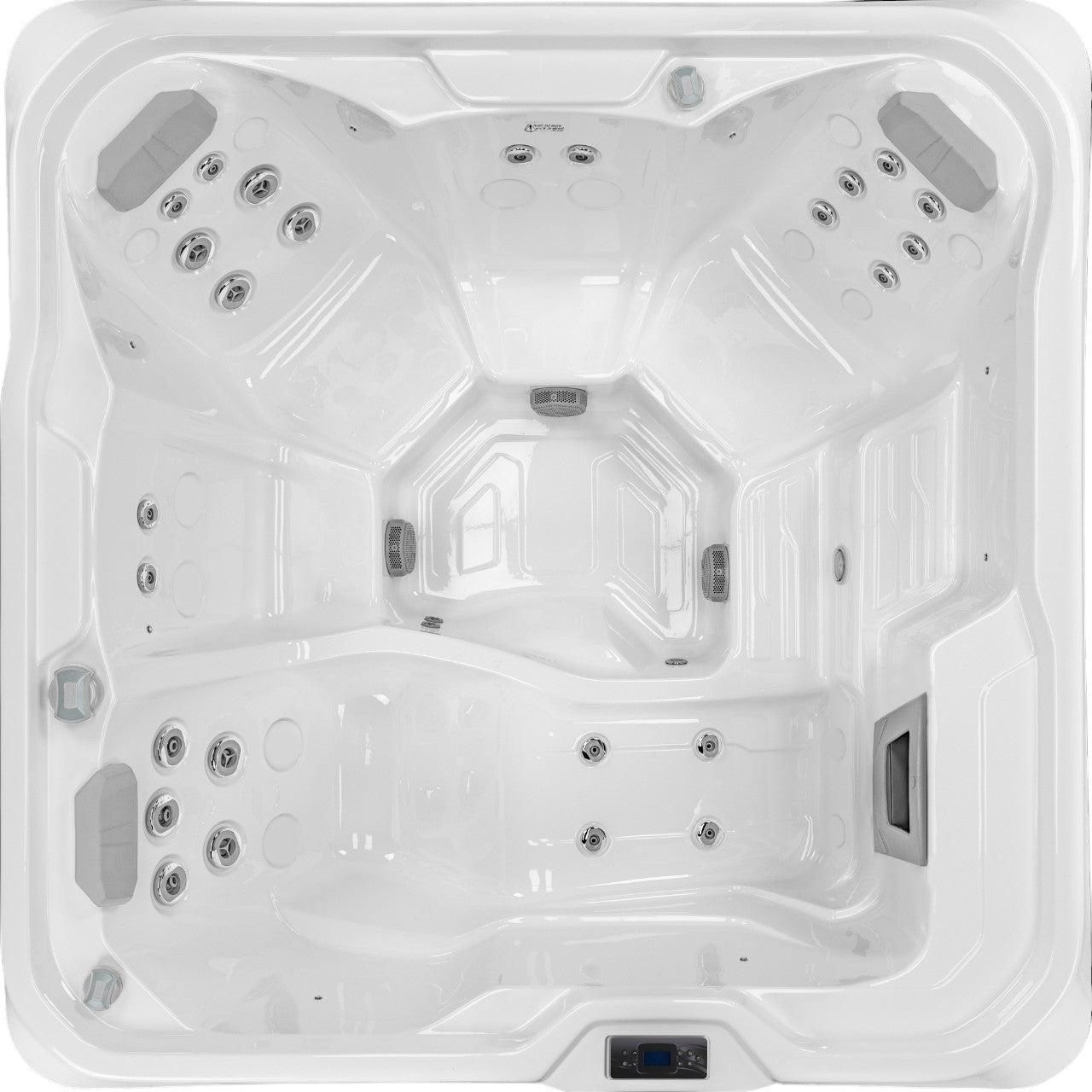

The square layout works for couples who want space as well as families who need upright seating. The lounger supports the legs and lower back, whilst four separate seats keep the tub useful when friends arrive.
The massage
Hydrotherapy that earns its footprint

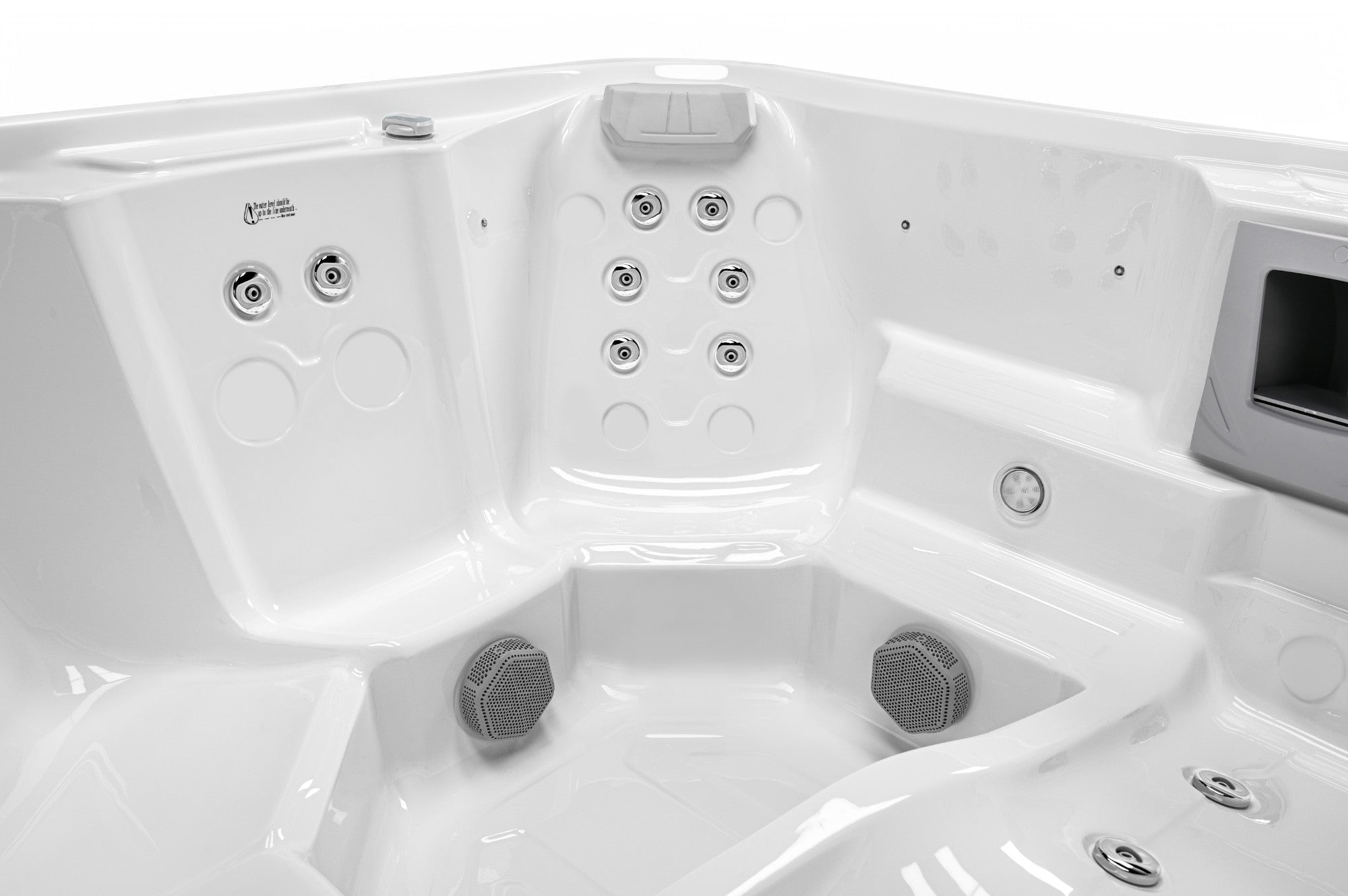

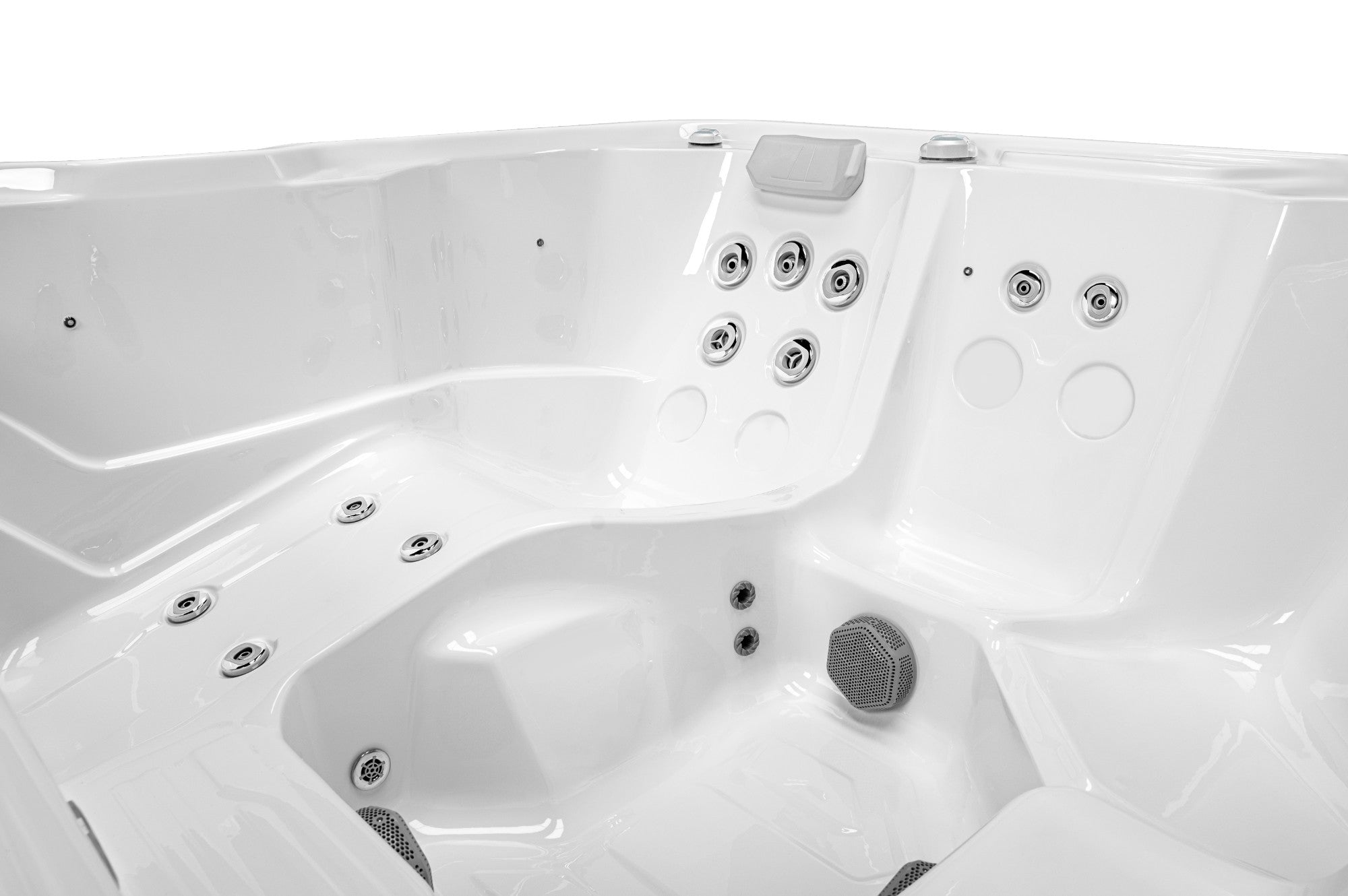

Twenty-five rotary and directional jets are powered by an LX-LP300 massage pump. The MP31 control panel keeps temperature, filtration, jets and lighting simple, with optional WiFi control and Bluetooth audio available as an upgrade.
Heat that stays put
Edge-foam shell insulation, reflective skirt insulation, an insulated base and the supplied cover work together to reduce avoidable heat loss.
Cleaner water, less faff
A separate circulation pump, Pure Blue filtration and an ozone mixing tube support steady water movement and day-to-day clarity.
Evenings look better
Underwater, waterline and cabinet LEDs bring the atmosphere without affecting the clean Alpine White shell and dark cabinet finish.
Control and connectivity
Set the soak without turning it into a technology project
SPATECH CA100 with MP31 controls puts temperature, filtration, jets and lighting in one place. Add the optional Equinox media pack for app-based WiFi control and discreet Bluetooth audio.

Included in the price
Your tub arrives with the useful bits
Insulated cover
Helps hold heat between sessions and protects the water when the tub is not in use.
Hot-tub steps
A safer, easier first step into a shell that sits up to 920 mm high.
Winter bag
Full outer protection for storage, transport and the less charming end of British weather.
1 × Oasis Pure Blue filter
The matched filtration setup for this model is supplied from day one.
Free mainland delivery
Delivery and positioning to a suitable prepared location are included for mainland UK addresses.
Ozone-supported water care
The ozone mixing tube helps the filtration system keep water clearer between routine chemical checks.
Before delivery
A straightforward route from order to first soak
Prepare a solid, level base
The finished base must support the tub, its 995 litres of water and everyone using it. Concrete, reinforced paving or a purpose-built spa base are the usual choices.
Check the whole access route
Measure gates, corners, overhangs and the final position against the 2000 × 2000 × 820 mm cabinet. Speak to us before ordering if access is tight.
Arrange the correct electrics
Use a suitable outdoor, RCD-protected 13 Amp supply. The customer supplies the correctly specified cable and plug; have a qualified electrician confirm the setup before delivery.
No permanent plumbing
Fill with a hose and drain to a suitable point in line with local guidance. Leave service access around the cabinet rather than boxing the tub in.
The numbers
Specifications
| Seating | Four seats and one lounger |
|---|---|
| Dimensions | 2000 × 2000 × 820 mm |
| Water capacity | 995 litres |
| Dry weight | 307 kg |
| Hydrotherapy jets | 25 |
| Massage pumps | 1 × LX-LP300 |
| Circulation pump | LX-WTC50 |
| Control system | SPATECH CA100 with MP31 controls |
| Heater | 2 kW |
| Electrical supply | 13 Amp |
| Water care | Ozone mixing tube |
| Filtration | 1 × Oasis Pure Blue filter |
| Lighting | Underwater, waterline and cabinet LED lighting |
| Fountains | No |
| Shell colour | Alpine White |
| Connectivity | Optional WiFi control and Bluetooth audio |
| Winter protection | Full outer winter bag included |


Make the practical bits easy
Check the space, check the electrics, then get the hot tub you will actually use
Not sure whether the Lite or Pro model suits you, or whether the delivery route works? Send us the details before ordering and we will help you get it right.
Ask Heracles about the EQ360 LiteCompare the Equinox hot tub range
- Best for
- Families wanting a balanced 5-person hot tub without needing a 32A electrical supply.
- Power
- 13A plug-and-play
- Capacity
- 5 people
- Massage jets
- 25 hydro jets
- Dimensions
- 2000 × 2000 × 820 mm
- Water capacity
- 995 L
- Best for
- A roomier 13A spa with twin loungers and extra water volume for longer soaks.
- Power
- 13A plug-and-play
- Capacity
- 5 people, 2 loungers
- Massage jets
- 27 hydro jets
- Dimensions
- 2120 × 2120 × 920 mm
- Water capacity
- 1310 L
- Best for
- People who like the EQ360 footprint but want stronger massage performance from a 32A setup.
- Power
- 32A hardwired
- Capacity
- 5 people, 1 lounger
- Massage jets
- 39 hydro + 10 air jets
- Dimensions
- 2000 × 2000 × 820 mm
- Water capacity
- 995 L
- Best for
- The sweet spot: twin loungers, strong jet output and sensible size for most gardens.
- Power
- 32A hardwired
- Capacity
- 5 people, 2 loungers
- Massage jets
- 43 hydro + 8 air jets
- Dimensions
- 2120 × 2120 × 920 mm
- Water capacity
- 1310 L
- Best for
- Maximum space, deeper water volume and the strongest overall Equinox massage experience.
- Power
- 32A hardwired
- Capacity
- 5 people, 2 loungers
- Massage jets
- 45 hydro + 10 air jets
- Dimensions
- 2300 × 2300 × 920 mm
- Water capacity
- 1610 L
| Model | Most compact
From £3,999.00
| Best 13A starter
From £4,799.00
| Best 13A lounger
From £5,299.00
| Compact Pro
From £5,799.00
| Best all-rounder
From £6,199.00
| Largest Equinox
From £6,999.00
|
|---|---|---|---|---|---|---|
| Best for | Smaller patios, couples and buyers who want the simplest 13A Equinox option. | Families wanting a balanced 5-person hot tub without needing a 32A electrical supply. | A roomier 13A spa with twin loungers and extra water volume for longer soaks. | People who like the EQ360 footprint but want stronger massage performance from a 32A setup. | The sweet spot: twin loungers, strong jet output and sensible size for most gardens. | Maximum space, deeper water volume and the strongest overall Equinox massage experience. |
| Power | 13A plug-and-play | 13A plug-and-play | 13A plug-and-play | 32A hardwired | 32A hardwired | 32A hardwired |
| Capacity | 4 people | 5 people | 5 people, 2 loungers | 5 people, 1 lounger | 5 people, 2 loungers | 5 people, 2 loungers |
| Massage jets | 24 hydro jets | 25 hydro jets | 27 hydro jets | 39 hydro + 10 air jets | 43 hydro + 8 air jets | 45 hydro + 10 air jets |
| Dimensions | 2000 × 1640 × 760 mm | 2000 × 2000 × 820 mm | 2120 × 2120 × 920 mm | 2000 × 2000 × 820 mm | 2120 × 2120 × 920 mm | 2300 × 2300 × 920 mm |
| Water capacity | 850 L | 995 L | 1310 L | 995 L | 1310 L | 1610 L |
| Price from | From £3,999.00 | From £4,799.00 | From £5,299.00 | From £5,799.00 | From £6,199.00 | From £6,999.00 |
| View model | View model | View model | View model | View model | View model |
Not sure which Equinox model is right for your garden, electrics or access route?
